Industrial Ultrasonic Cleaner with 96L Tank Volume 800mm Long and 1500W Ultrasonic Power for Meltblown Die Cleaning

Industrial Ultrasonic Cleaner with 96L Tank Volume 800mm Long and 1500W Ultrasonic Power for Meltblown Die Cleaning
Industrial Ultrasonic Cleaner with 96L Tank Volume 800mm Long and 1500W Ultrasonic Power for Meltblown Die Cleaning Industrial Ultrasonic Cleaner with 96L Tank Volume 800mm Long and 1500W Ultrasonic Power for Meltblown Die Cleaning Industrial Ultrasonic Cleaner with 96L Tank Volume 800mm Long and 1500W Ultrasonic Power for Meltblown Die Cleaning Industrial Ultrasonic Cleaner with 96L Tank Volume 800mm Long and 1500W Ultrasonic Power for Meltblown Die Cleaning Industrial Ultrasonic Cleaner with 96L Tank Volume 800mm Long and 1500W Ultrasonic Power for Meltblown Die Cleaning Industrial Ultrasonic Cleaner with 96L Tank Volume 800mm Long and 1500W Ultrasonic Power for Meltblown Die Cleaning

Gambar besar :  Industrial Ultrasonic Cleaner with 96L Tank Volume 800mm Long and 1500W Ultrasonic Power for Meltblown Die Cleaning

Detail produk:
Sertifikasi: CE, RoHS
Dokumen: Brosur Produk PDF
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 2
Harga: 1250
Kontak

Industrial Ultrasonic Cleaner with 96L Tank Volume 800mm Long and 1500W Ultrasonic Power for Meltblown Die Cleaning

Deskripsi
Nomor Model.: JP-301ST Ukuran tangki: 800*300*400mm
Kekuatan ultrasonik: 1500W Volume tangki: 96 liter
Frekuensi: 28Khz/40Khz Bahan: SUS304
Daya pemanas: 3000W Pengaturan suhu: 95°C / 203°F
Transduser: 30 pcs Dimensi mesin: 1100*700*850mm
Dimensi pengemasan: 1200*800*1000mm Berat kotor: 130kg
Beban keranjang: Lebih dari 200KG Catu Daya: 220V 50Hz; 110V 60Hz
Pengaturan Waktu: 0~99 jam
Menyoroti:

96L Tank Volume Ultrasonic Cleaner

,

800mm Long Ultrasonic Cleaning Machine

,

1500W Ultrasonic Power Industrial Ultrasonic Cleaner

Meltblown Machine Spinneret Ultrasonic Cleaner 96L 800mm Long
Product Description

This 100L Ultrasonic Spinneret Cleaning Machine is specially designed for cleaning melt-blown die blocks and spunbond dies with exceptional efficiency.

Key Specifications
  • Inner tank dimensions: 800×300×400mm (customizable)
  • 1500W ultrasonic power with 3000W heating power
  • Tank material: SUS 304 (SUS 316 available as customization)
  • 96L tank capacity (25 gallon)
Advanced Features
  • Fast and thorough cleaning of molds and spinnerets
  • Removes heavy dirt and fabric without damaging molds
  • Adjustable power settings for different cleaning requirements
  • Optional filtration cycle system and lifting mechanism
  • Available with electrolysis, cooling system, and deionized water options
Technical Parameters
Model Number JP-301ST
Function Ultrasonic cleaning + Hot water cleaning
Ultrasonic Frequency 28/40kHz (customizable 20KHz-132KHz)
Tank Material SUS 304 (SUS 316 optional)
Machine Dimensions 1100×700×850mm (L×W×H)
Gross Weight 130KG
Power Supply 220V 50Hz; 110V 60Hz
Certifications CE; RoHS; FCC; REACH
Cleaning Process for Meltblown Machine Spinneret
  1. Place spinneret and filter into furnace
  2. Perform ultrasonic cleaning
  3. Inspect holes with magnifier
  4. Clean holes using 0.25mm diameter needle
  5. Reassemble and tighten screws gently
  6. Adjust gap to 0.8mm

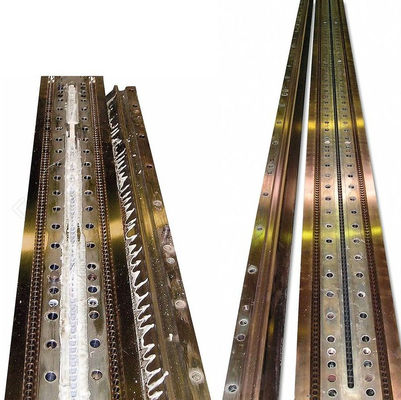

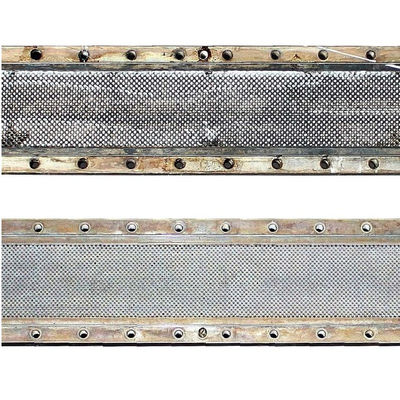

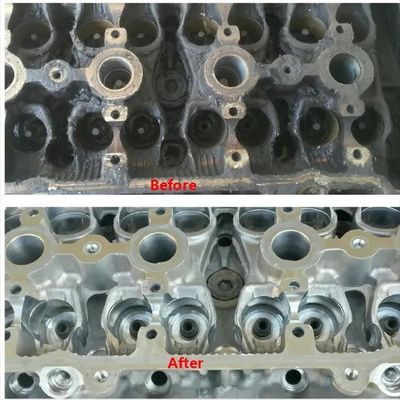

Cleaning Effect Demonstration
Industrial Ultrasonic Cleaner with 96L Tank Volume 800mm Long and 1500W Ultrasonic Power for Meltblown Die Cleaning 0 Industrial Ultrasonic Cleaner with 96L Tank Volume 800mm Long and 1500W Ultrasonic Power for Meltblown Die Cleaning 1
Industrial Applications

This cleaning system is essential for maintaining melt-blown dies used in production of:

  • Respiratory and fuel filters
  • Nonwoven microfibre fabrics
  • Absorption materials (diapers, isolating mats)
  • Single-use clothing and vacuum cleaner bags
Industrial Ultrasonic Cleaner with 96L Tank Volume 800mm Long and 1500W Ultrasonic Power for Meltblown Die Cleaning 2 Industrial Ultrasonic Cleaner with 96L Tank Volume 800mm Long and 1500W Ultrasonic Power for Meltblown Die Cleaning 3 Industrial Ultrasonic Cleaner with 96L Tank Volume 800mm Long and 1500W Ultrasonic Power for Meltblown Die Cleaning 4
Technical Specifications
Model Tank Size (mm) Volume (L) Ultrasonic Power (W) Heating Power (W)
JP-120ST 500×300×250 38 240-600 1500
JP-301ST 800×300×400 96 600-1500 4500
JP-480ST 700×500×500 175 960-2400 6000
Warranty & Support

1 year warranty with free replacement parts during warranty period. Technical support available after warranty expires.

Industrial Ultrasonic Cleaner with 96L Tank Volume 800mm Long and 1500W Ultrasonic Power for Meltblown Die Cleaning 5 Industrial Ultrasonic Cleaner with 96L Tank Volume 800mm Long and 1500W Ultrasonic Power for Meltblown Die Cleaning 6
